CHC High Performance Differential Geodetic GPS Survey Equipment GPS GNSS Receiver GNSS RTK GPS With K80/I73

Brand Name : CHCNAV

Model Number : K80 / i73

Place of Origin : China

MOQ : 1 piece

Price : $2,800.00

Payment Terms : L/C, T/T

Supply Ability : 1 ~ 30 day

Delivery Time : 30 work day

Product name : RTK receiver

Material : magnesium alloy

Application : Land Surveying

Channels : 1408

Customized support : OEM

GPS : L1c/a, l1c, l2c, l2e, l5

Glonass : L1C/A, L1P, L2C/A, L2P, L3

Galileos : E1, E5A, E5B, E5AltBOC, E6

Transmitting speed : 9.6Kbps, 19.2Kbps

Contact Now

CHC High Performance Differential Geodetic GPS Survey Equipment GPS GNSS Receiver GNSS RTK GPS With K80/I73
Products Description
CHC High Performance Differential Geodetic GPS Survey Equipment GPS GNSS Receiver GNSS RTK GPS With K80/I73
CHC High Performance Differential Geodetic GPS Survey Equipment GPS GNSS Receiver GNSS RTK GPS With K80/I73
CHC High Performance Differential Geodetic GPS Survey Equipment GPS GNSS Receiver GNSS RTK GPS With K80/I73
CHC High Performance Differential Geodetic GPS Survey Equipment GPS GNSS Receiver GNSS RTK GPS With K80/I73
CHC High Performance Differential Geodetic GPS Survey Equipment GPS GNSS Receiver GNSS RTK GPS With K80/I73
CHC High Performance Differential Geodetic GPS Survey Equipment GPS GNSS Receiver GNSS RTK GPS With K80/I73
CHC High Performance Differential Geodetic GPS Survey Equipment GPS GNSS Receiver GNSS RTK GPS With K80/I73
Product Details
project
content
parameter

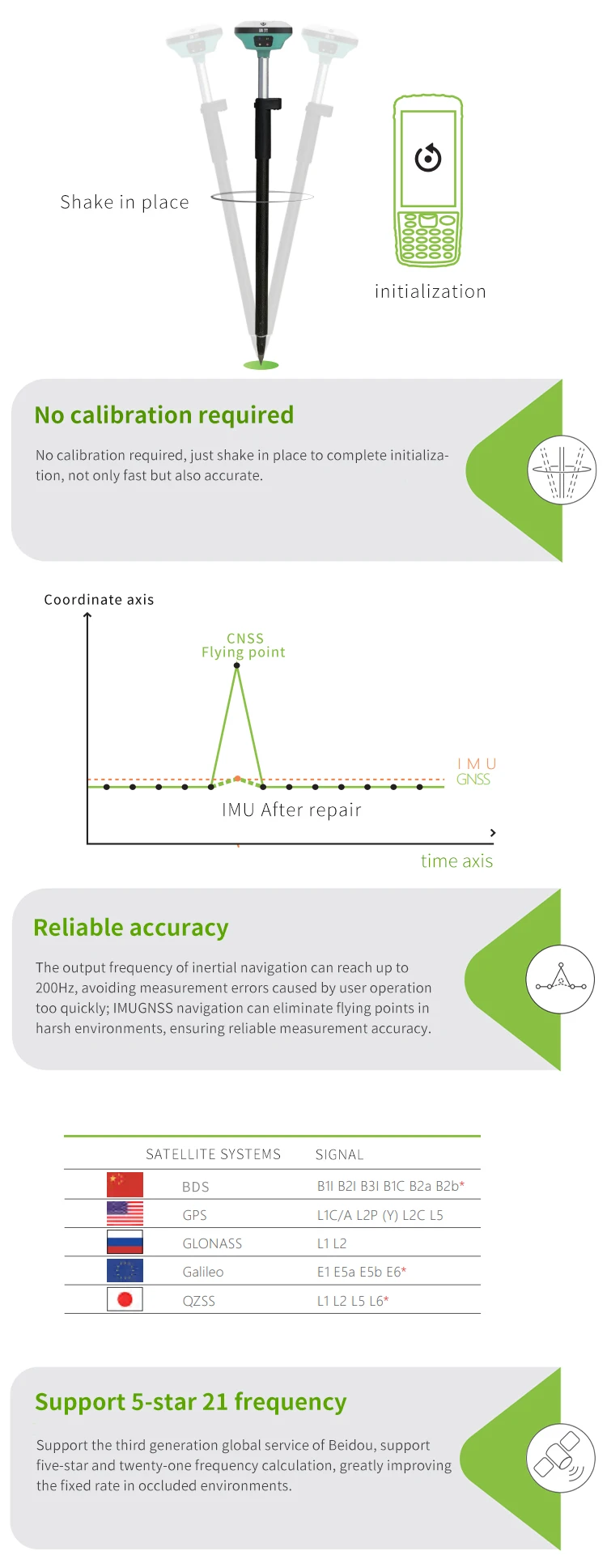

Receiver characteristics
satellite tracking
GPS+BDS+Glonass+Galileo+QZSS, supports the third generation of Beidou, supports five-star 16-band
number of channels
624 channels
operating system
LINUX system
Initialization time
<5s (typ.)
Initialization reliability
>99.99%
Receiver appearance
button
1 dynamic/static switch key, 1 power key
Indicator light
1 differential signal light, 1 satellite light, 1 static data acquisition light, 1 power light
Nominal accuracy
Static accuracy
Plane accuracy: ±(2.5+ 0.5×10-6×D) mm
Elevation accuracy: ±(5+0.5×10-6×D) mm
RTK accuracy
Plane accuracy: ±(8 + 1×10-6×D) mm
Elevation accuracy: ±(15+ 1×10-6×D) mm
Single machine accuracy
1.5m
Code difference accuracy
Plane accuracy: ±(0.25 + 1×10-6×D) m
Elevation accuracy: ±(0.5+ 1×10-6×D) m
Electrification parameters
Battery
Built-in 6800mAh lithium battery, supports 15 hours battery life of mobile station
External power supply
Support USB port external power supply
Physical properties
Size (L*W*H)
119mm*119mm*85mm
weight
0.73kg
Material
Magnesium alloy AZ91D body
Operating temperature
-45℃~+75℃
storage temperature
-55℃~+85℃
Waterproof and dustproof
IP68 level
Shock vibration
IK08 level
Anti-drop
Resistance to free fall of 2 meters
Data output
Output format
NMEA 0183, binary code
output method
BT/Wi-Fi/Radio
Static storage
storage format
Can directly record HCN, HRC, RINEX
storage
Standard 8GB built-in storage
Download method
Universal USB data download; HTTP download
Data communication
I/O interface
1 external UHF antenna interface
1 USB-TypeC interface, support charging, power supply, data download
Network module
Handbook supports 4G full Netcom
Radio station
Built-in high-frequency 450-470MHz single-receiving radio
Blue tooth
BT4.0, backward compatible with BT2.x, compatible with Windows, Android, IOS systems
data transmission
Wi-Fi data link
Wi-Fi
802.11 b/g/n
NFC
Support NFC flash connection
Receiver function
Super double collection
Support radio + network two-way data differential at the same time, provide comprehensive data services
One-click matching
Support handbook software to match base station data with one key
Handbook parameters
model
HCE600 Android Measuring Handbook
The internet
4G full Netcom, built-in eSIM free of three years of surveying and mapping traffic
operating system
Android 10
CPU
Eight-core 2.0Ghz processor
LCD screen
5.5'' HD display
Battery
14 hours of battery life
Three defenses
IP68
Certifications
CHC High Performance Differential Geodetic GPS Survey Equipment GPS GNSS Receiver GNSS RTK GPS With K80/I73
CHC High Performance Differential Geodetic GPS Survey Equipment GPS GNSS Receiver GNSS RTK GPS With K80/I73
Company Profile
CHC High Performance Differential Geodetic GPS Survey Equipment GPS GNSS Receiver GNSS RTK GPS With K80/I73

FAQ

1. who are we?
We are based in sichuan, China, start from 2016,sell to Africa(30.00%),Southeast Asia(16.00%),Mid East(11.00%),Eastern
Asia(10.00%),South America(10.00%),Central America(5.00%),South Asia(5.00%),Southern Europe(5.00%),North America(4.00%),Eastern
Europe(4.00%). There are total about 11-20 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
GNSS RTK,Total station,Level,Survey accessory,laser rangefinder

4. why should you buy from us not from other suppliers?
1.More than 20 years of experience in the trade field. 2.All products will have been strictly quality checked in factory before
sending out and all products have one year warranty.

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian

Our Service
CHC High Performance Differential Geodetic GPS Survey Equipment GPS GNSS Receiver GNSS RTK GPS With K80/I73
Packing & Delivery
CHC High Performance Differential Geodetic GPS Survey Equipment GPS GNSS Receiver GNSS RTK GPS With K80/I73
